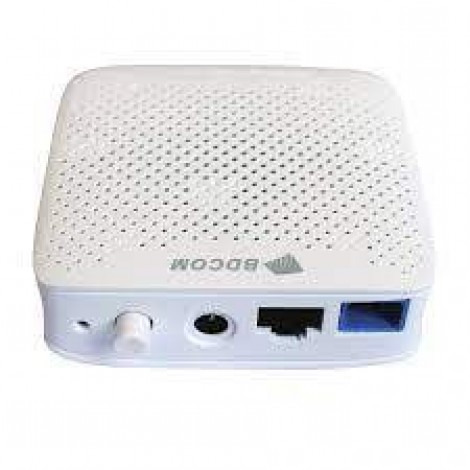

BDCOM P1501DS EPON ONU
PON ports: 1 SC/UPC
Ethernet ports : 1 GE TX
DRAM (MB) 64
12V 0.5A power input
flash MB 64
VLAN 4K
-
BDCOM P1501DS ONU is smart ONU with 1 Gigabit port designed for multi-service networks. It is complied with IEEE802.3ah and relevant requirements for EPON ONU regulated in Technical Requirements of YD/T 1475-2006—Ethernet-Based EPON and China Telecom EPON Technical Requirement. BDCOM P1501DS Series can be well connected with OLT from the mainstream manufacturers.
It supports the symmetric uplink/downlink 1.25Gbps PON transmission rate. Connected with BDCOM OLTs, it can realize 1:64 splitting ratio. The network covering radius can reach to 20km.
It supports standard OAM and expanded OAM defined by Chinese Telecom CTC2.1/3.0, including configuration, alarm, performance monitoring, fault isolation and security management, and it also supports private OAM defined by BDCOM.
For ensuring the secure service carrying ability of ONU, BDCOM has developed techniques including VLAN, STP, ACL, QoS, security filtering and Broadcast Storm Control.
It is complied with IEEE802.3ah and relevant requirements for EPON ONU regulated in Technical Requirements of YD/T 1475-2006—EthernetBased EPON and China Telecom EPON Technical Requirement 2.1/3.0.
It supports DBA and Rate-Limit. It supports advanced dynamic bandwidth distribution and accurate bandwidth limit, which enables users to appropriately share 1.25Gbps bandwidth resource. It also supports QOS function, which guarantees a reliable service quality and service priority.
t supports the “GreenTouch” architecture and “Smart@CHIP”.
-
-
