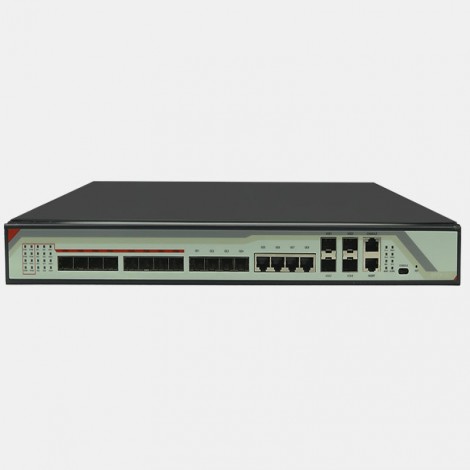

EPON OLT 8PORT FD1208S-BO
8 PORT EPON OLT
4 uplink GE ports, 4 uplink SFP ports, 4 10-gigabit uplink ports and 8 EPON ports
Single port supports 1:64 splitting ratio.
System support 512 EPON terminals accessing
Meet IEEE3x standard and relative EPON standards of Chinese Communication Industry Support OAMremote management for ONT/ONU, compatible with IEEE 3x OAM Protocol 1Uheight 8PON OLT product in compact design of Pizza-Box Layer 2 Switching Function QOSGuarantee
-
EPON OLT FD1208S-B0 completely meet relative standards of IEEE 802.3x and FSAN. The equipment is a 1U rack-mounted device, providing 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 4 10-gigabit uplink ports and 8 EPON ports. Single port supports 1:64 splitting ratio. System support 512 EPON terminals accessing in for the most.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, is convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
- Meet IEEE3x standard and relative EPON standards of Chinese Communication Industry
- Support OAMremote management for ONT/ONU, compatible with IEEE 3x OAM Protocol
- 1Uheight 8PON OLT product in compact design of Pizza-Box
- Layer 2 Switching Function
OLT equips with very powerful layer 2 Full Wire Speed Switching and completely supports layer 2 protocol. OLT supports varieties of layer 2 functions like TRUNK, VLAN, rate limit, port isolate, queue technology, flow control technology, ACL and so on, which provides technical guarantee for the development of multi-service integrated.
- QOSGuarantee
It can provide various QoS for EPON system, which can meet different QoS requirements for delay, jitter, and packet loss rate of different service flows.
- Easy-to-Use Management System
Support management method of CLI, WEB, SNMP, TELNET, SSH and meet OAM standard, through OAM channel protocol service management can be realized, including ONT function parameter set, Qos parameters, configuration information request, performance statistics, auto-reporting of running events in system, configuration for ONT from OLT, fault diagnosis and management of performance and safety.
-
-
