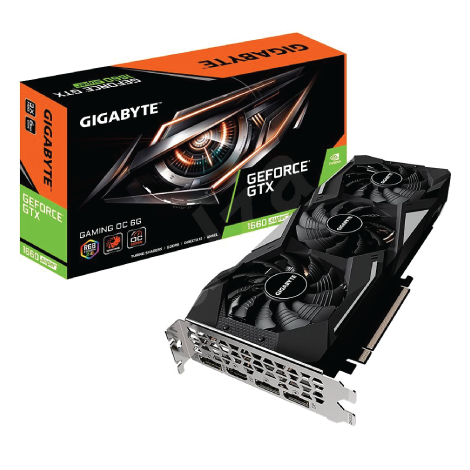

Gigabyte GeForce GTX 1660 Super OC 6GB Graphics Card
Type: GDDR6; Size: 6 GB; Resolution : 7680x4320@60Hz
Core Clock : 1830 MHz (Reference Card: 1785 MHz); Memory Clock: 14000 MHz
BUS Type: PCI-E 3.0 x 16; CUDA Cores: 1408
Display Port: DisplayPort 1.4 *3; HDMI: HDMI 2.0b *1
Dimensions: L=225.65 W=122.02 H=40.5 mm
-
Gigabyte GTX 1660 Super OC 6GB Graphics Card
WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, a composite copper heat pipe direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures. The GIGABYTE “Alternate Spinning” is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure. The shape of the pure copper heat pipe maximizes the direct contact area with the GPU, enhancing heat transfer. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling. The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity. The graphics card uses the better power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
-
-
